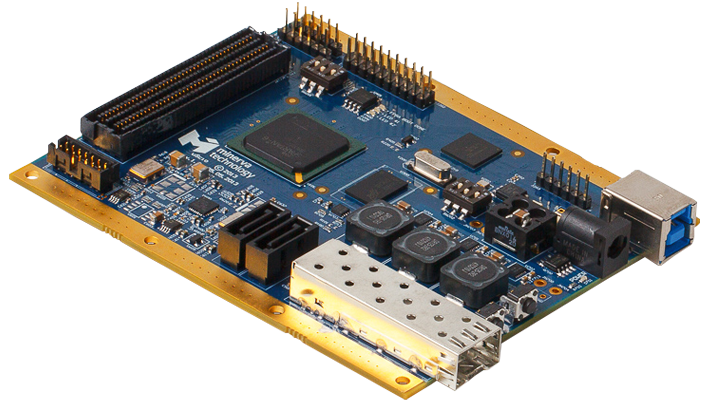

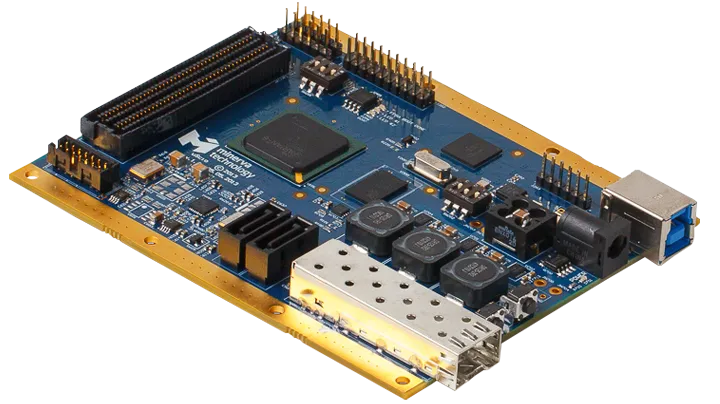

uScio FMC Carrier USB 3.0 Board
The uScio USB 3.0 FMC Carrier is an FPGA Mezzanine Carrier board designed for transmitting and receiving various digital data streams through USB 3.0 and GigE interfaces. This device is suitable for a wide range of applications, including real-time HD video processing, machine vision, and scientific research. It can also be used as a development kit for Cypress CYUSB3014 and/or Xilinx Spartan-6 XC6SLX150T (100, 45).
The uScio board supports both our own and third-party FMC mezzanine boards that are mechanically and electrically compliant with the ANSI/VITA standard. The HDA3-C variant features a low-pin count connector, a front panel with USB 3.0 and SFP connectors, and a power supply connector to support high-power FMC daughter boards.
The uScio board is WhiteRabbit technology ready, making it ideal for sub-nanosecond time-accurate measurements in scientific research programs.
Features
- —3.2 Gbit/s data rate through USB 3.0.
- —Any type of SFP modules are supported. Operating speed for SFP modules: up to 3.125 Gbps.
- —Two SATA-II interfaces.
- —FMC type: LPC
- —Supporting up to 10 Gbit/s transmission with adaptively equalized I/O.
- —Supporting single-ended and differential signaling up to 2 Gbit/s.
- —High power consumption mezzanine cards require an external power supply (wall brick 5–12V 5A).
- —FPGA JTAG connector, USB Controller JTAG connector (standard ARM 20-pin JTAG header).
Product highlights
- —Unique functionality. uScio is the only card which combines FMC, USB 3.0 and SFP interfaces operating simultaneously, thus saving money on hardware units for specific projects.
- —Scalability. Third party FMC daughter boards allows extending functionality in accordance with customer requirements.
- —Flexibility. Because uScio is based on the FPGA device can be easily tailored to your needs. Any kind of signal conversion and processing are available upon request.
