SIMS16 Chip Testing System
SIMS16 is a specialized 16-channel analog-to-digital integrated chip designed for reading and amplifying signals from multi-element x-ray sensor arrays, comparing signal amplitudes against a set threshold, and counting the number of pulses with amplitudes exceeding the defined threshold.
The system allows testing all operating modes of the SIMS16 chip.
The SIMS16 testing system provides a reliable solution for testing analog and digital chips used in scientific research and industrial automation. Its modular architecture ensures easy adaptability to various customer requirements.

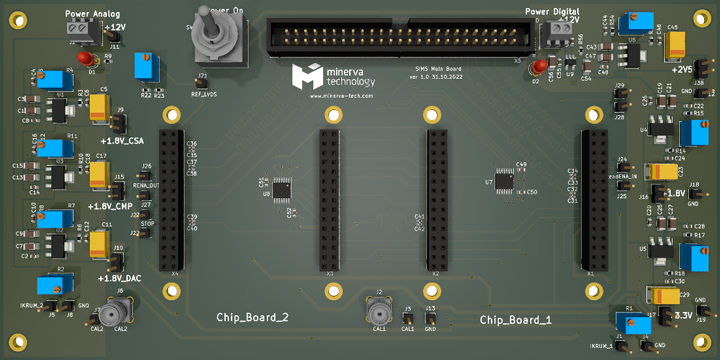

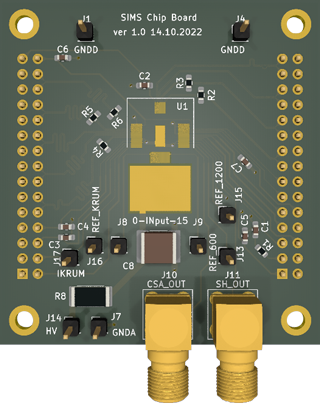

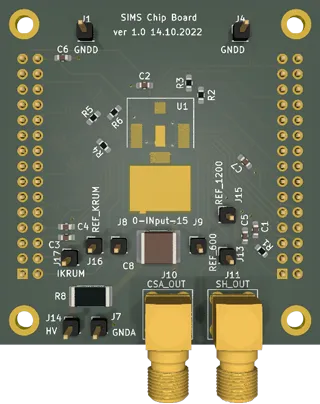

Test stand for SIMS16 chips, featuring a mainboard with installed SIMS16 chips for testing.

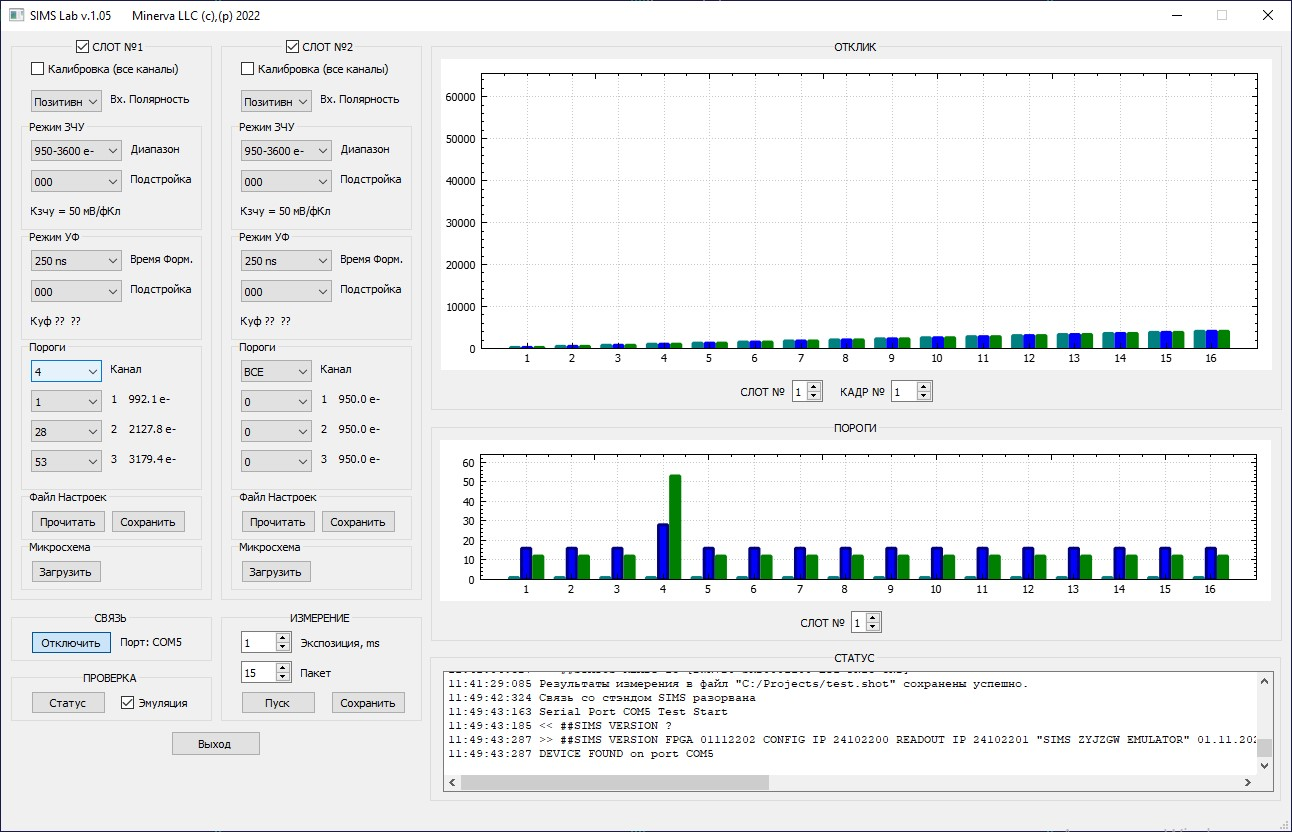

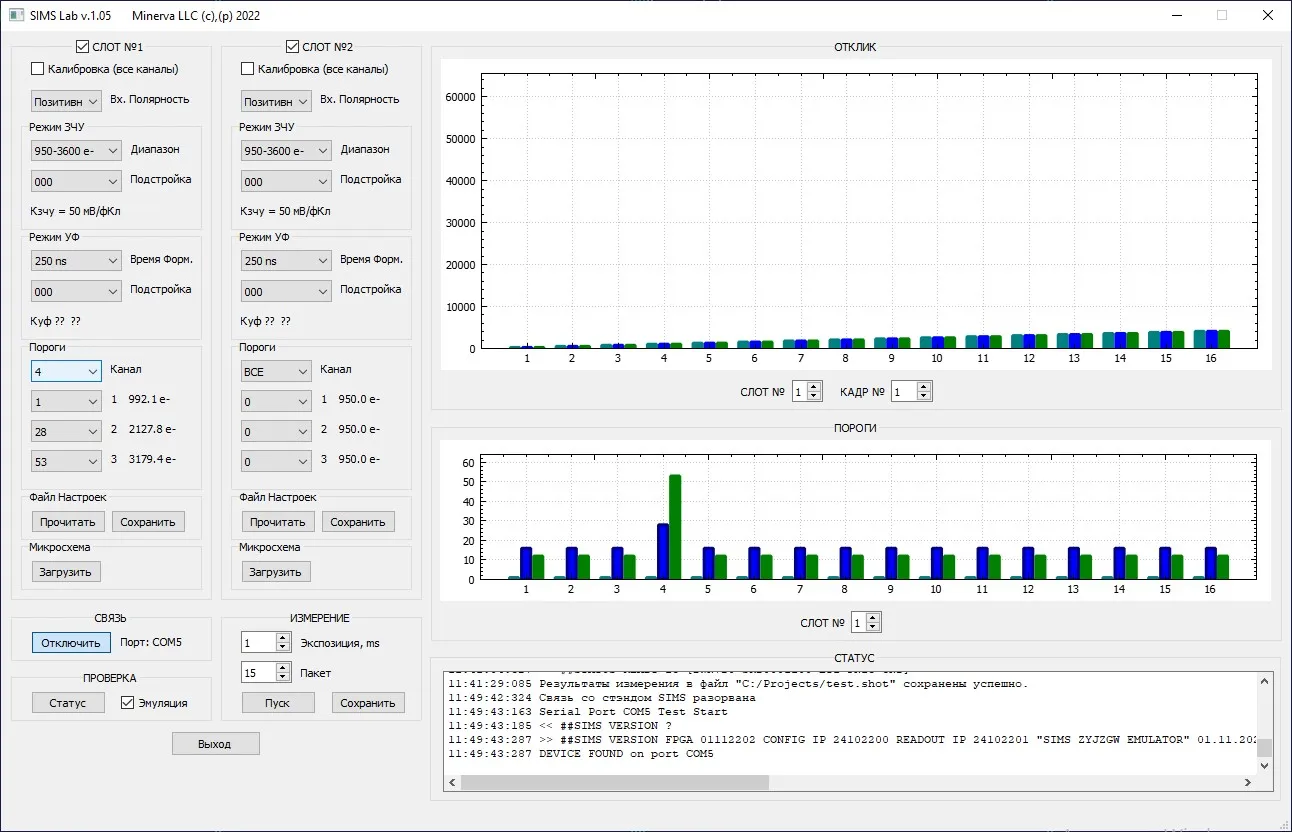

Software interface for controlling the test stand, showing all operating modes of the SIMS16 chip.
Features
- —Interface for connecting to a PC via USB 2.0.
- —Supports testing of two chips in cascade mode.
- —Adjustable power supplies: 3 for analog and 3 for digital blocks.
- —Testing of two chips in cascade mode.
- —SMA connectors for external signal generators and analog circuit monitoring.
- —Software:
- —Configuration file generation.
- —Configuration file read/write.
- —Save chip operation results to a file.
- —Visualize chip operation results.
